fix(extract): keep external imports on unchanged scans

[VasuBansal7576]

Problem

Running graphify extract twice on an unchanged TypeScript file can delete an external dependency and its import edge.
The rescued import stub stores the package name as source_file, so the incremental stale-file check mistakes it for a deleted local file.
With --no-cluster, the command even reports "outputs left untouched" after modifying graph.json.

For a two-file fixture, the raw graph shrinks from 5 nodes / 4 edges to 4 nodes / 3 edges, with zero changed or deleted source files.

Solution

Emit the existing unowned-source representation for external package stubs, while leaving relative imports and tsconfig path resolution unchanged.
Add raw-graph cleanup when an update removes a stub's last reference, preserving shared dependencies, standalone nodes, and both supported hyperedge layouts.

Existing graphs need one rebuild after upgrading: run graphify extract <corpus> --code-only --force --out <same-output-root> with your usual clustering options.
This replaces pre-fix metadata; an unchanged incremental run alone cannot repair an existing graph.

Before and after

Actual Graphify viewer screenshots rendered from the second run's saved graph using build_from_json and to_html.
Same fixture and viewport; the viewer generates the layout.
Normal graph assembly drops an unresolved ref_ edge, so viewer totals differ from raw JSON totals.

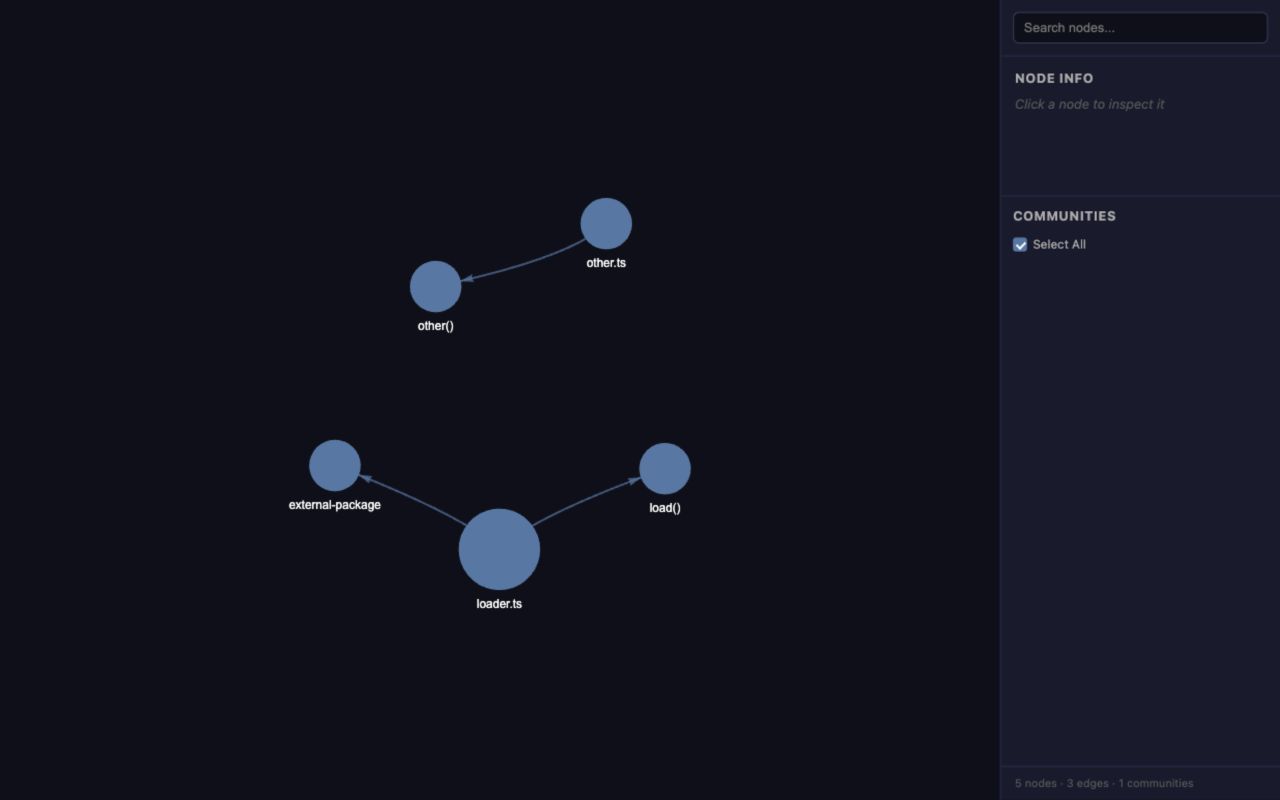

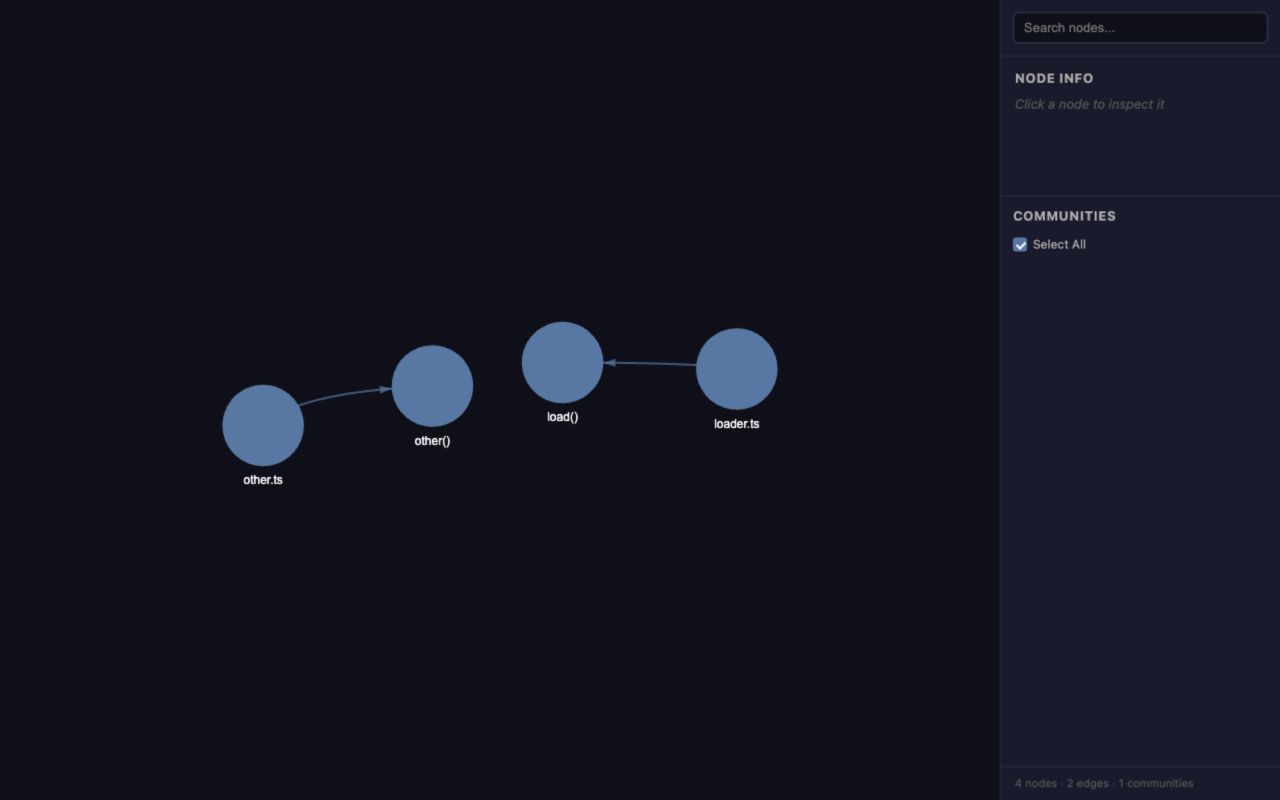

Before: dependency missing	After: dependency preserved

Fixture, CLI receipts, and saved graphs.
No API calls or private corpus data are involved.

Validation

• 196 focused tests pass; Ruff and git diff --check pass.
• Real CLI regression covers bare/scoped packages, raw/clustered graphs, unchanged scans, unrelated edits, shared importers, deletion, and exclusion.
• Pruning regression preserves nested graph.hyperedges members.
• Required graphify update . completed; optional SQL, DM, and Robot fixture parsers were unavailable.
• Independent review checked standards and lifecycle behavior; the nested-hyperedge finding was fixed and the rebuild requirement verified.

Related reports checked

No matching issue or PR found in open/closed searches before submission.
Unlike #3084 / #3092, this requires no package manifest or ID collision.
Unlike #1711 / #3328, no source is re-extracted before the loss.
#2807 / #2809 cover orphan cleanup after a real deletion; this failure deletes a still-referenced dependency during an unchanged scan.
Also inspected #880, #2878, #3262, and the resolved path-normalization report #2210.

[graphify-labs]

Graphify reviewed this change.

Looks safe to merge — no coupling regressions and no blocking issues, checked against the code graph (not a self-assessment).

Formal verification. No changes could be formally verified in this run.

---

Graphify review — findings

Fixes external import stubs being wrongly pruned during incremental re-extraction: merge_raw_extraction and _prune_graph_json_sources now run a new _sweep_raw_orphans that drops only unowned nodes whose last edge reference this update actually removed, while preserving already-isolated nodes and any node still referenced through a hyperedge (including nested graph.hyperedges). Rescued package specifiers via _resolve_rescued_specifier now carry empty source metadata instead of a fake local path, so a package name is no longer mistaken for a deleted file. Adds coverage for the sweep semantics and for end-to-end survival of external imports across no-op, edit, add, delete, and exclusion-only extractions.

No blocking issues surfaced. 8 lower-confidence candidates did not survive cross-model review.

Analysis details — impact, health, verification

Impact & health

Graphify review

Impact — 2686 functions depend on the 368 functions this change touches.

Health — this change adds coupling hotspots:

• new: extract() — 520 callers, 43 callees
• new: _rebuild_code() — 113 callers, 50 callees
• new: build_from_json() — 192 callers, 18 callees
• new: build_merge() — 62 callers, 13 callees
• new: to_obsidian() — 36 callers, 13 callees
• new: extract_files_direct() — 17 callers, 20 callees
• new: extract_js() — 85 callers, 4 callees
• new: extract_xaml() — 19 callers, 17 callees
• …and 65 more — each is listed as a finding

Verification — 2686 functions in the blast radius were not formally verified this run (proofs are advisory here).

Gate & verification

graphify gate

PASS — objectively clean (no health regressions, tests not run — proofs not run this pass (advisory)). Grounded, not self-assessed.

Advisory (not blocking):

• verification_scope: 2479 function(s) in the blast radius were not formally verified this run

Formal verification

Could not verify: Could not verify merge\_raw\_extraction.

The verifier did not have enough to check merge\_raw\_extraction, so it is saying so rather than guessing. No false assurance is the whole point.

Guarantee: No guarantee either way, this is an honest abstention, not a pass.

Note: Reason: parameter `graph_path` is annotated `str | Path` — outside the synthesizable primitive/collection set

Could not verify: Could not verify \_prune\_graph\_json\_sources.

The verifier did not have enough to check \_prune\_graph\_json\_sources, so it is saying so rather than guessing. No false assurance is the whole point.

Guarantee: No guarantee either way, this is an honest abstention, not a pass.

Note: Reason: parameter `graph_path` is annotated `Path` — outside the synthesizable primitive/collection set

Could not verify: Could not verify \_resolve\_rescued\_specifier.

The verifier did not have enough to check \_resolve\_rescued\_specifier, so it is saying so rather than guessing. No false assurance is the whole point.

Guarantee: No guarantee either way, this is an honest abstention, not a pass.

Note: Reason: parameter `path` is annotated `Path` — outside the synthesizable primitive/collection set

· 1 grounded finding(s) anchored inline below; 72 more finding(s) on lines outside this diff (see the check run).

[graphify-labs]

⚠️ Health regression — merge_raw_extraction()

fans out to 10 callees (efferent coupling); 8 callers depend on it (afferent coupling).

Grounded coupling-delta finding (deterministic), not an LLM guess.

[VasuBansal7576]

The added callee is _sweep_raw_orphans, in the same module. Both raw-merge and exclusion-only pruning need the same last-reference rule, so the shared helper keeps their behavior consistent. The regression tests cover shared importers, removal of the last importer, standalone nodes, and both hyperedge layouts. I checked the diff and am keeping the shared helper; this coupling-count increase does not identify a correctness regression.

[VasuBansal7576]

The Graphify review check passes on 7818da9, and I have replied to its inline coupling advisory. The CI workflow has not executed any jobs: run https://github.com/Graphify-Labs/graphify/actions/runs/33923399562 ended with action_required. Could a maintainer approve the fork workflow if approval is required? The 196 focused local tests and lint pass, but I am not treating those as a replacement for the repository CI matrix.
